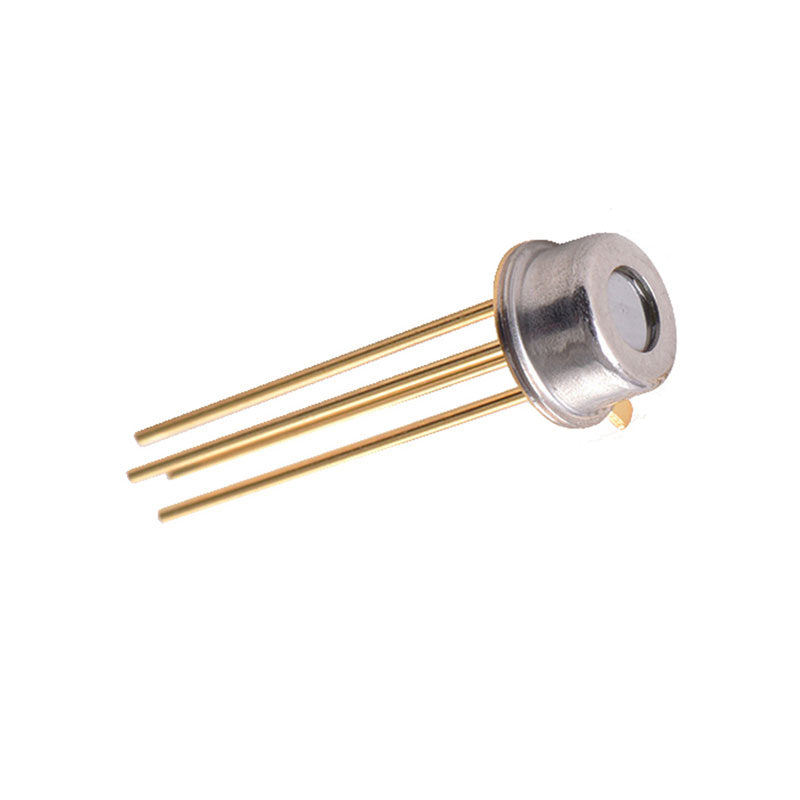

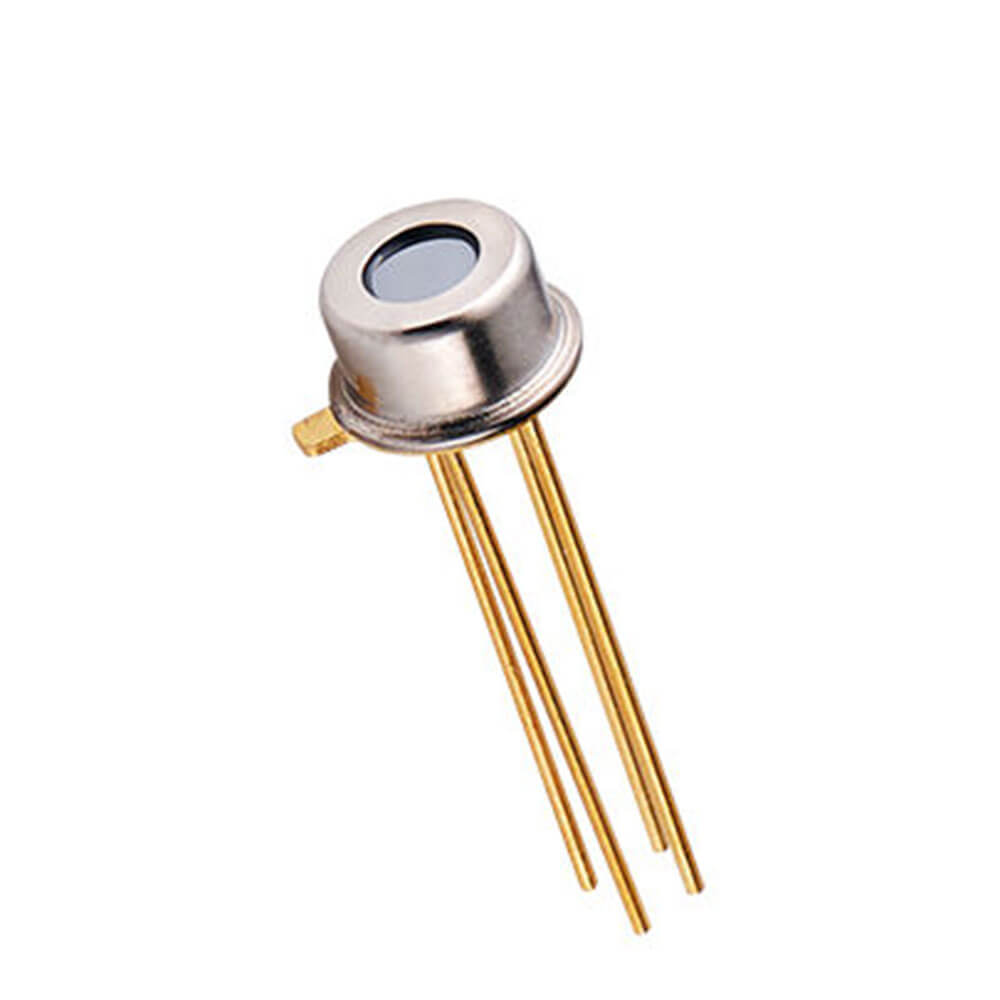

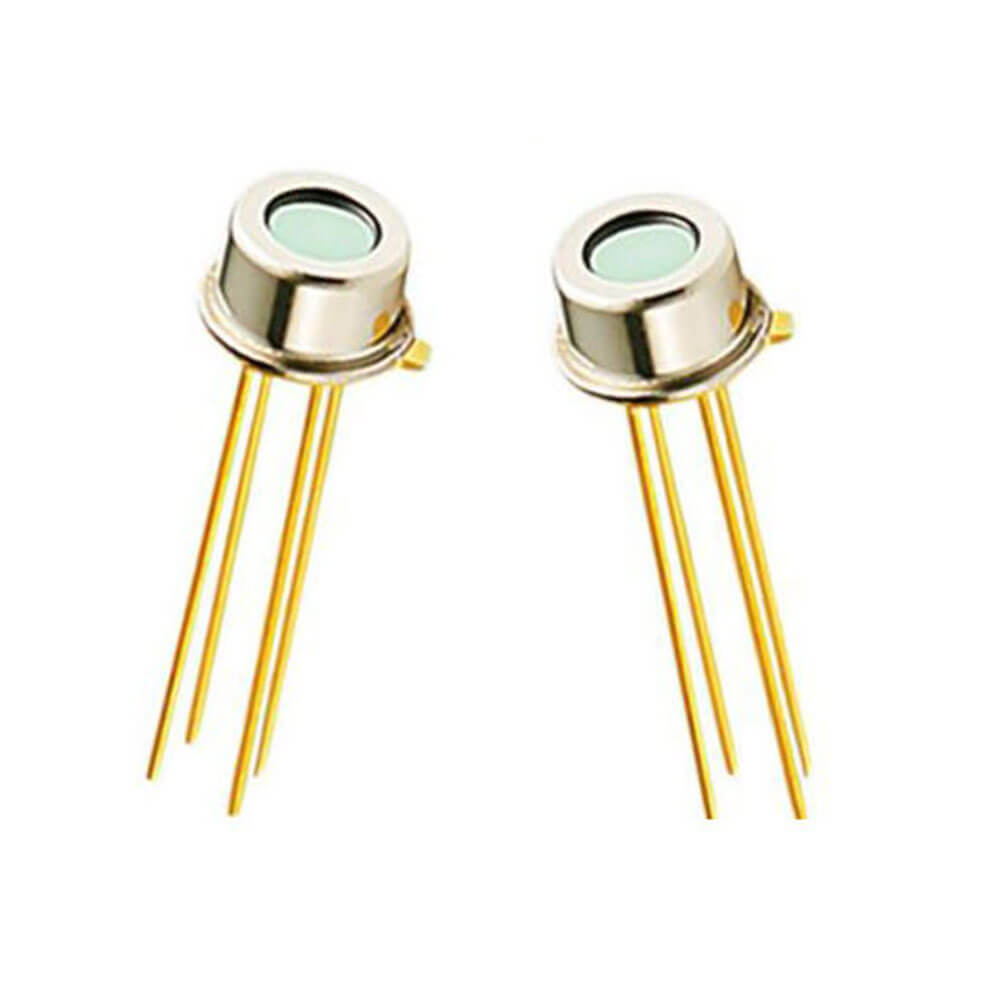

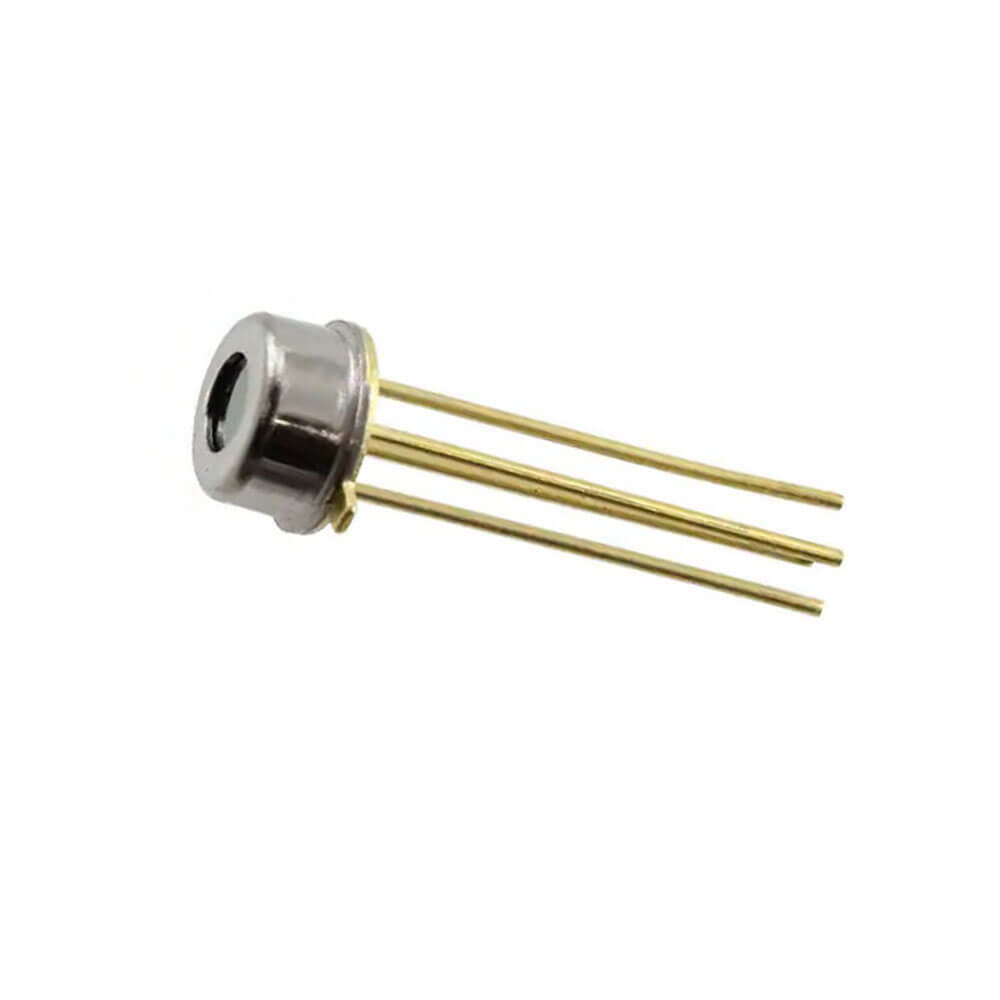

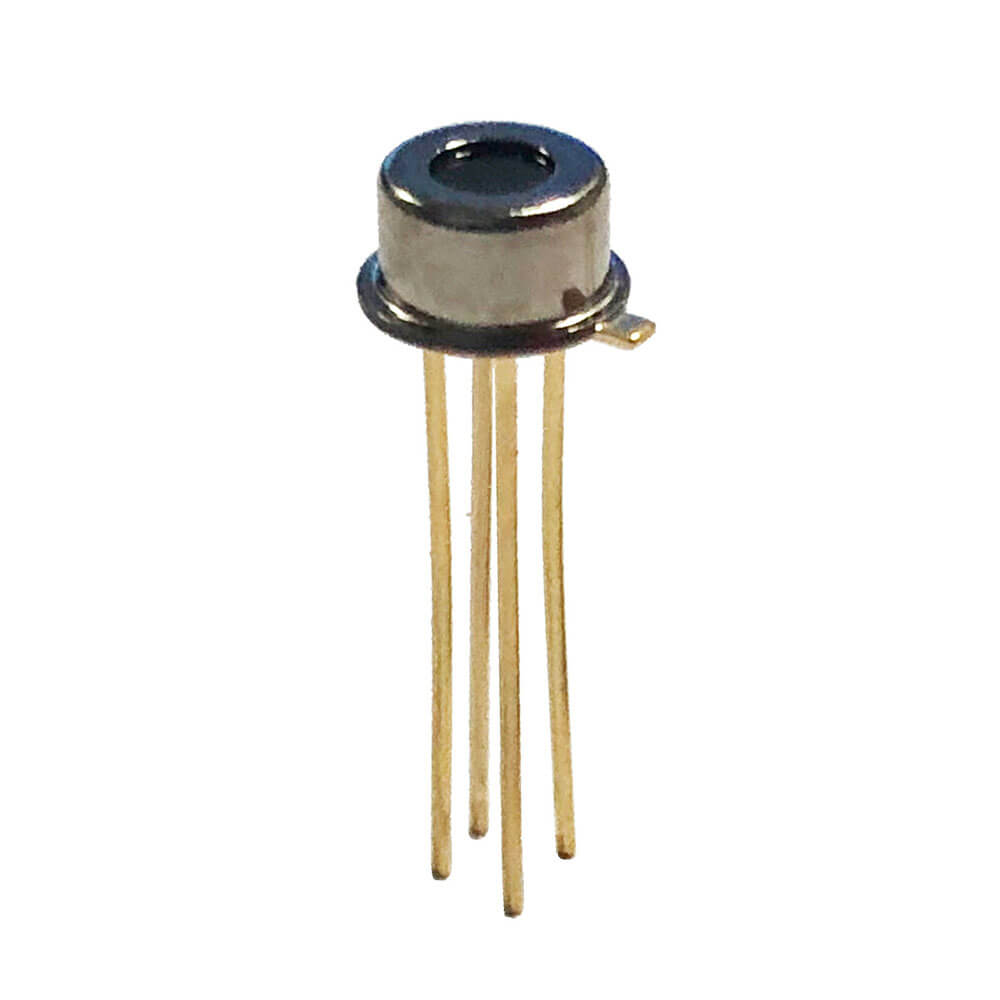

I2C TO-46 Thermopile Temperature Sensor XGZT2613

  • Standard I2C interface
  • High-precision digital temperature measuring sensor
  • Temperature calibrated, easy to implement
  • Direct temperature measurement without peripheral circuits
  • MEMS thermopile technology
  • High response rate, and a fast response time
  • A 5.5 μ m long-pass filter
  • TO-46 metal tube shell package
Share on whatsapp
Share on email
Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Description

PRODUCT BRIEF

XGZT2613 is a high-precision digital infrared thermopile products used for a variety of non-contact temperature measurement Application in medical&healthcare, consumer electronics, Industrial etc,. The sensor include MEMS thermopile sensor chip, NTC thermistor and specialized signal conditioning ASIC chip. The ASIC chip is equipped with 24 bits Sigma-Delta high precision ADC, low noise instrument amplifier PGA and interface circuit.

APPLIED RANGE

  • Intelligent wearable devices
  • Intelligent household electrical appliance
  • Industrial temperature monitoring
  • Non-contact human surfaces temperature measurement
  • Intelligent temperature sensing and control



OUTLINE DIMENSION

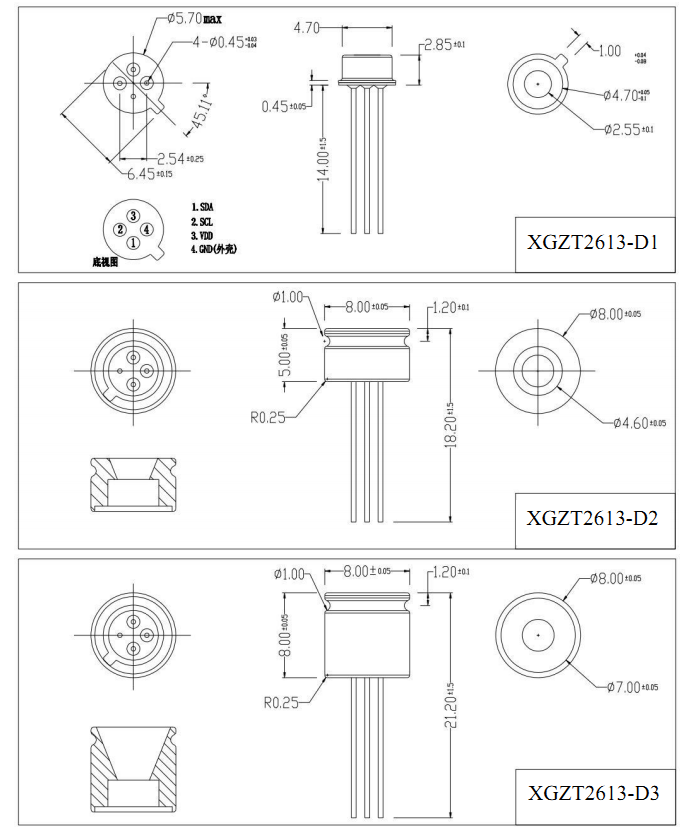

2613 OUTLINE DIMENSION1

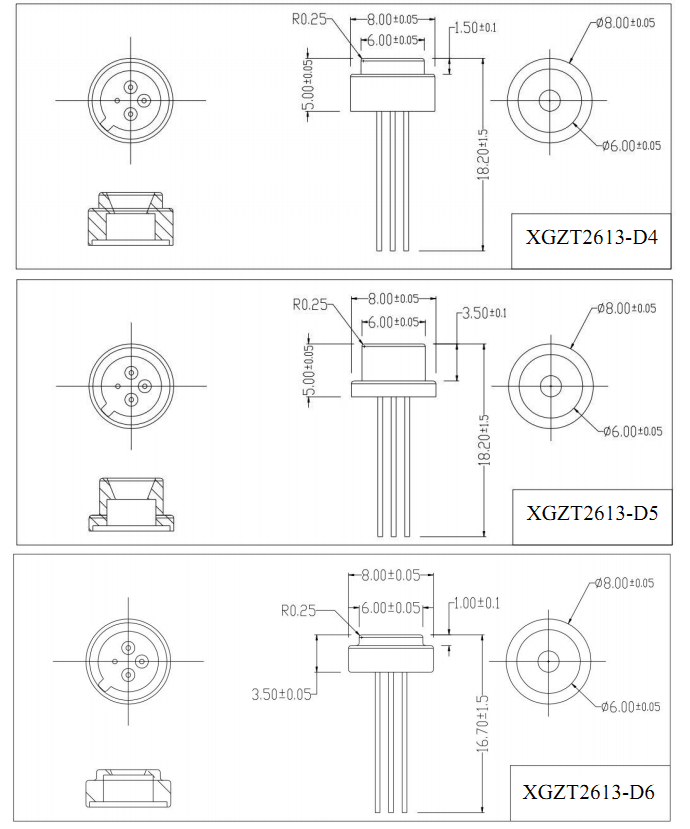

2613 OUTLINE DIMENSION2



More information about I2C TO-46 Thermopile Temperature Sensor XGZT2613, refer to Datasheet or contact CFSensor

XGZT2613 Thermopile Sensor (V1.0).PDF
